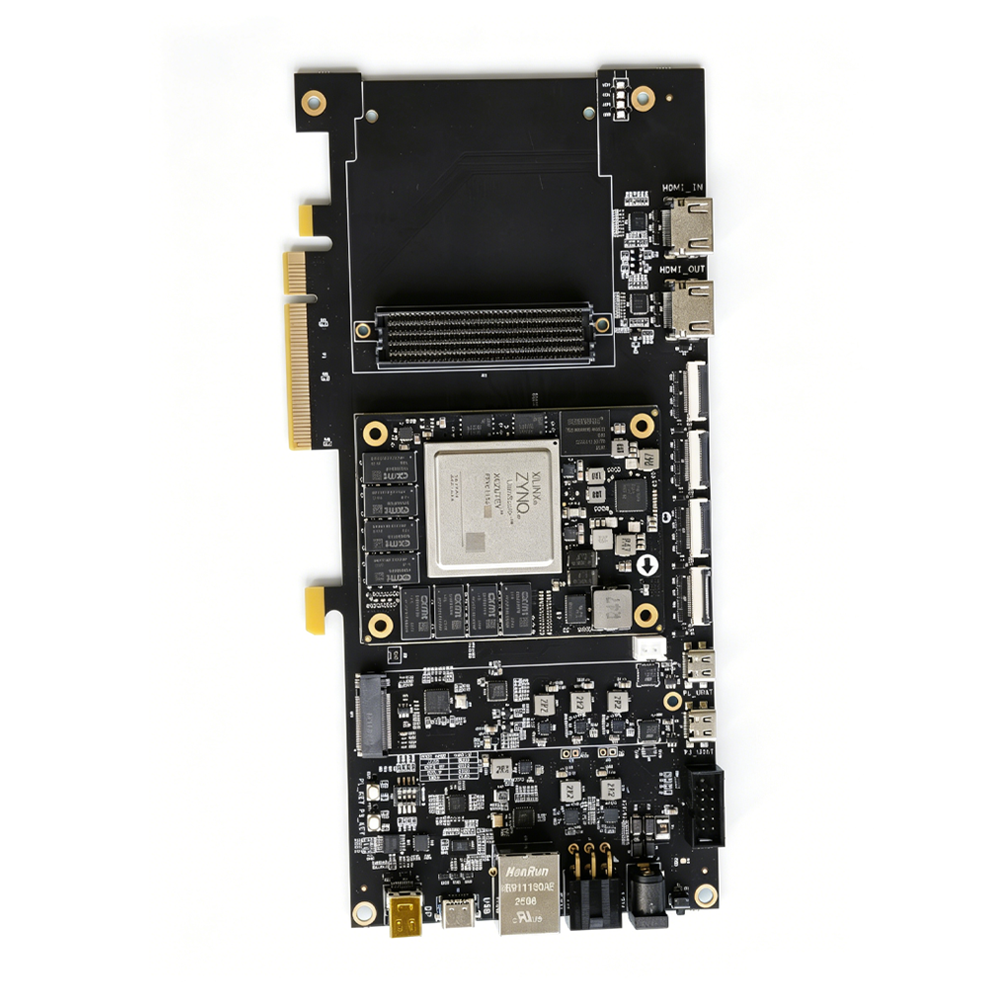

A high-performance PCIe video processing development board based on the industrial-grade XCZU7EV-2FFVC1156I MPSoC. It integrates large-capacity logic resources, DSP arrays and a VCU hardware codec engine with native H.264/H.265 hardware encoding/decoding, designed for high-quality, low-latency, multi-interface video system development. (The official site also notes compatibility with XCZU7EG/XCZU7CG/XCZU11EG 2FFVC1156I modules.)
Interface, cooling, structure and batch supply can be customized per project · we respond within 1 business day after submission.
A high-performance PCIe video processing development board based on the industrial-grade XCZU7EV-2FFVC1156I MPSoC. It integrates large-capacity logic resources, DSP arrays and a VCU hardware codec engine with native H.264/H.265 hardware encoding/decoding, designed for high-quality, low-latency, multi-interface video system development. (The official site also notes compatibility with XCZU7EG/XCZU7CG/XCZU11EG 2FFVC1156I modules.)
| Parameter | Specification |
|---|---|
| Board Model | ZU7EV (SoM + carrier board) |

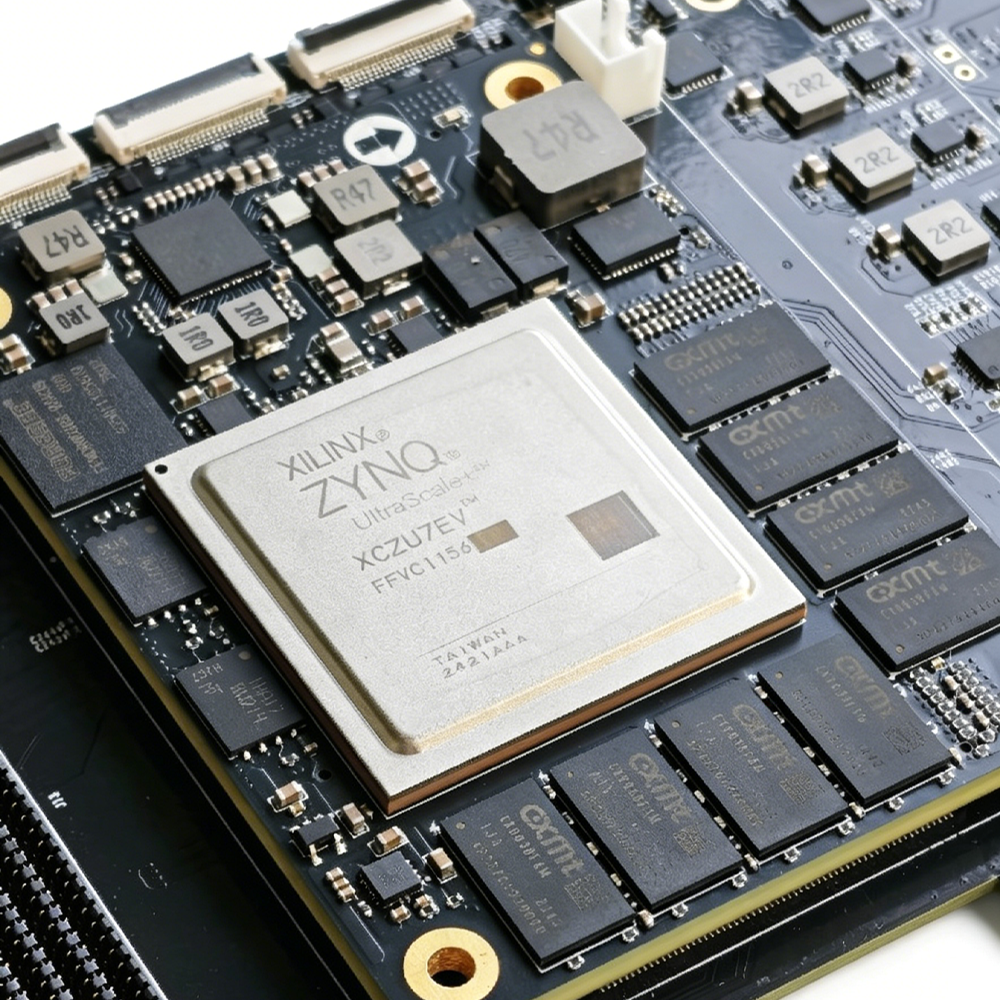

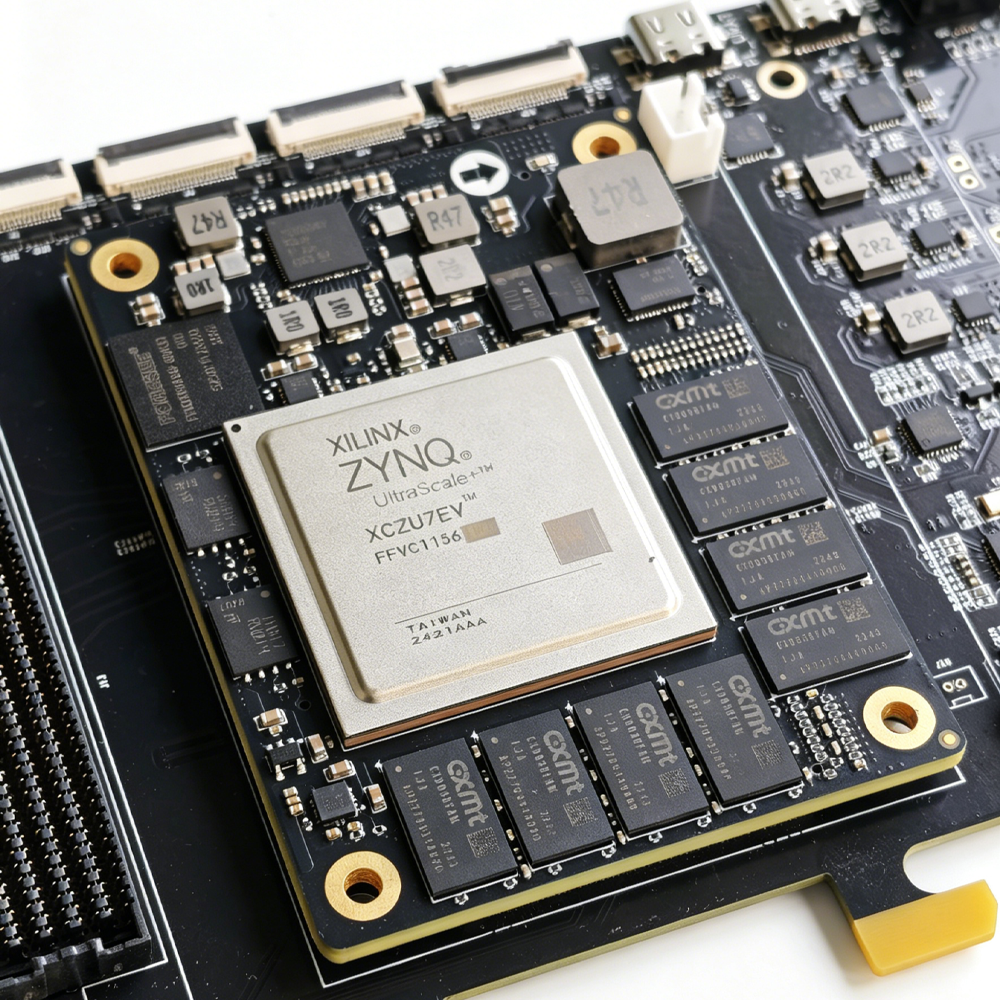

| FPGA Chip Model | XCZU7EV-2FFVC1156I |
| Chip Grade | Industrial; temperature range: -40°C to 85°C |
| CPU Cores | ARM quad-core Cortex™-A53, dual-core Cortex™-R5F |
| GPU Core | Mali™-400 MP2 |
| VCU (Video Codec) | H.264/H.265@4K 120Hz |
| PS High-Speed Interfaces | PCIe Gen2 x4, 2× USB 3.0, SATA 3.1, DisplayPort, 4× Tri-mode Gigabit Ethernet |
| PS Low-Speed Interfaces | 2× USB 2.0, 2× SD/SDIO, 2× UART, 2× CAN 2.0B, 2× I2C, 2× SPI, 4× 32b GPIO |
| Logic Cells | 504K |
| LUTs | 230.4K |
| Flip-Flops | 460.8K |
| DSP | 12288 |
| Block RAM | 11Mb |
| UltraRAM | 27Mb |
| QSPI Flash | 1Gbit (128MB) dual QSPI Flash |
| FMC HPC | 34 IO pairs, 8 GTY transceiver pairs |
| PS-side DDR4 | 4GB, 64bit, 2400Mbps |
| PL-side DDR4 | 4GB, 64bit, 2400Mbps |
| PCIe | 1 PCIe gold fingers, PCIe 3.0 x8, up to 64Gbps |
| FMC Expansion | LA 34 IO pairs, 8 GTH transceiver pairs, up to 16G |
| DP Output | 1 Mini DisplayPort output, 4K@30Hz or 1080P@60Hz |
| M.2 Port | 1 PCIe 2.0 x1 M.2, supports M.2 SSD |
| Gigabit Ethernet Port | 1 |
| USB 3.0 Port | 1 Type-C, HOST/SLAVE/OTG supported |
| USB UART | 1 Type-C to UART |
| JTAG Debug Port | 1 × 10-pin 2.54mm standard JTAG |
| Micro SD Slot | 1 |
| HDMI Input | 1 × HDMI 2.0, up to 4K@60 |
| HDMI Output | 1 × HDMI 2.0, up to 4K@60 |
| MIPI Ports | 4, support CSI and DSI, bidirectional, 4 lanes @2.5G per port, Raspberry Pi MIPI compatible |
| LVDS Port | Shared with MIPI; 1.8V configurable for LVDS output |
Industrial sites impose strict requirements on control equipment: wide temperature range, interference immunity and deterministic latency. FPGA handles real-time control, protocol parsing and high-speed I/O acquisition with reconfigurable parallel logic, providing a highly reliable hardware foundation for PLC expansion, motion control and industrial communication buses. Duyuan industrial-grade boards support a -40~85°C wide temperature range and long-term stable supply, helping devices move from prototype verification to mass production.
AI model deployment demands a balanced combination of compute power, bandwidth and power efficiency. With hardware parallelism, reconfigurable datapaths and rich high-speed interfaces, FPGA and MPSoC deliver low-latency, energy-efficient heterogeneous compute for CNN/YOLO inference, Vitis-AI acceleration and edge intelligence terminals, enabling rapid algorithm porting and product deployment.
Medical equipment demands the highest levels of image quality, real-time performance and reliability. FPGA provides low-latency pipelines and highly reliable hardware for endoscope ISP, medical image processing and device control, helping China-based medical devices achieve independent and controllable development in image enhancement, interface protocols and system miniaturization.
From university labs to enterprise pre-research, rapidly verifying algorithms and hardware architectures is the critical first step to project success. Duyuan FPGA development boards and SoMs provide rich high-speed interfaces, complete reference designs and end-to-end technical support for ASIC prototype verification, high-speed data acquisition, instrument development and academic research — helping teams turn ideas into working hardware systems quickly.
4K/8K video, machine vision and industrial cameras impose strict requirements on end-to-end latency and interface coverage. With hardware-direct video paths and parallel pipelines, FPGA delivers microsecond-level deterministic processing in video encoding/decoding, image pre-processing, multi-protocol interfaces and low-latency transport, supporting deep customization of video services and vision algorithms.
