FPGA SoM
AMD Xilinx XCVU9P Virtex UltraScale+ FPGA Ultra High-Speed Fiber SoM
Virtex UltraScale+ flagship · fiber/PCIe high-speed interconnect · FMC expansion
$7,692.15Tax not included View details →

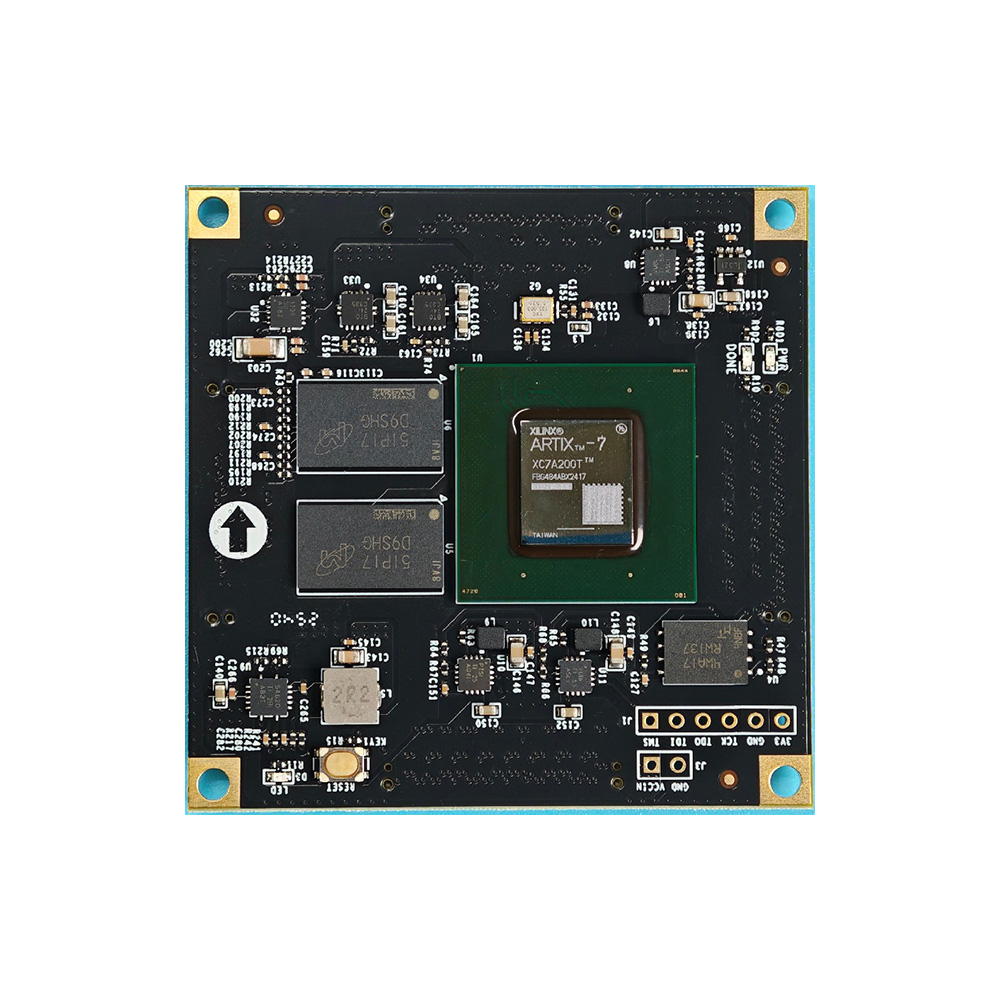

The C7A200 industrial-grade FPGA SoM is developed on the AMD (Xilinx) Artix-7 XC7A200T-2FBG484I, operating reliably across a -40°C to 85°C wide temperature range. With abundant on-board logic resources, 740 DSP units, 4 high-speed transceivers and a PCIe Gen2 interface, it features low power, high cost-effectiveness and easy integration — an ideal core platform for industrial control, embedded development, data acquisition and general prototype verification.
Interface, cooling, structure and batch supply can be customized per project · we respond within 1 business day after submission.
The C7A200 industrial-grade FPGA SoM is developed on the AMD (Xilinx) Artix-7 XC7A200T-2FBG484I, operating reliably across a -40°C to 85°C wide temperature range. With abundant on-board logic resources, 740 DSP units, 4 high-speed transceivers and a PCIe Gen2 interface, it features low power, high cost-effectiveness and easy integration — an ideal core platform for industrial control, embedded development, data acquisition and general prototype verification.
| Parameter | Specification |
|---|---|
| SoM Model | C7A200 |
| FPGA Chip Model | XC7A200T-2FBG484I |
| DDR Memory | 1GB DDR3, 800Mbps data rate |
| Chip Grade | Industrial; operating temperature: -40°C ~ 85°C |
| Logic Cells | 215,360 |
| LUTs | 33,650 |
| Flip-Flops | 269,200 |
| DSP | 740 |
| Block RAM | 13,140KB |
| QSPI Flash | 128Mbit (16MB) |
| I/O Count | 180 (3.3V level) |
| PCIe Gen2 | 1 |
| Transceivers | 4 |
Industrial sites impose strict requirements on control equipment: wide temperature range, interference immunity and deterministic latency. FPGA handles real-time control, protocol parsing and high-speed I/O acquisition with reconfigurable parallel logic, providing a highly reliable hardware foundation for PLC expansion, motion control and industrial communication buses. Duyuan industrial-grade boards support a -40~85°C wide temperature range and long-term stable supply, helping devices move from prototype verification to mass production.
5G/6G base stations and high-speed network equipment impose strict requirements on protocol processing, data forwarding and deterministic latency. With high-speed transceivers, reconfigurable protocol stacks and parallel pipelines, FPGA powers 100G optical communication, protocol processing and network security acceleration, providing a high-throughput, low-latency hardware platform from R&D to mass production.
From university labs to enterprise pre-research, rapidly verifying algorithms and hardware architectures is the critical first step to project success. Duyuan FPGA development boards and SoMs provide rich high-speed interfaces, complete reference designs and end-to-end technical support for ASIC prototype verification, high-speed data acquisition, instrument development and academic research — helping teams turn ideas into working hardware systems quickly.
4K/8K video, machine vision and industrial cameras impose strict requirements on end-to-end latency and interface coverage. With hardware-direct video paths and parallel pipelines, FPGA delivers microsecond-level deterministic processing in video encoding/decoding, image pre-processing, multi-protocol interfaces and low-latency transport, supporting deep customization of video services and vision algorithms.
FPGA SoM
Virtex UltraScale+ flagship · fiber/PCIe high-speed interconnect · FMC expansion
We respond within 1 business day after submission, supporting selection consulting, parameter customization and batch supply.
Contact · +86 18621324348
