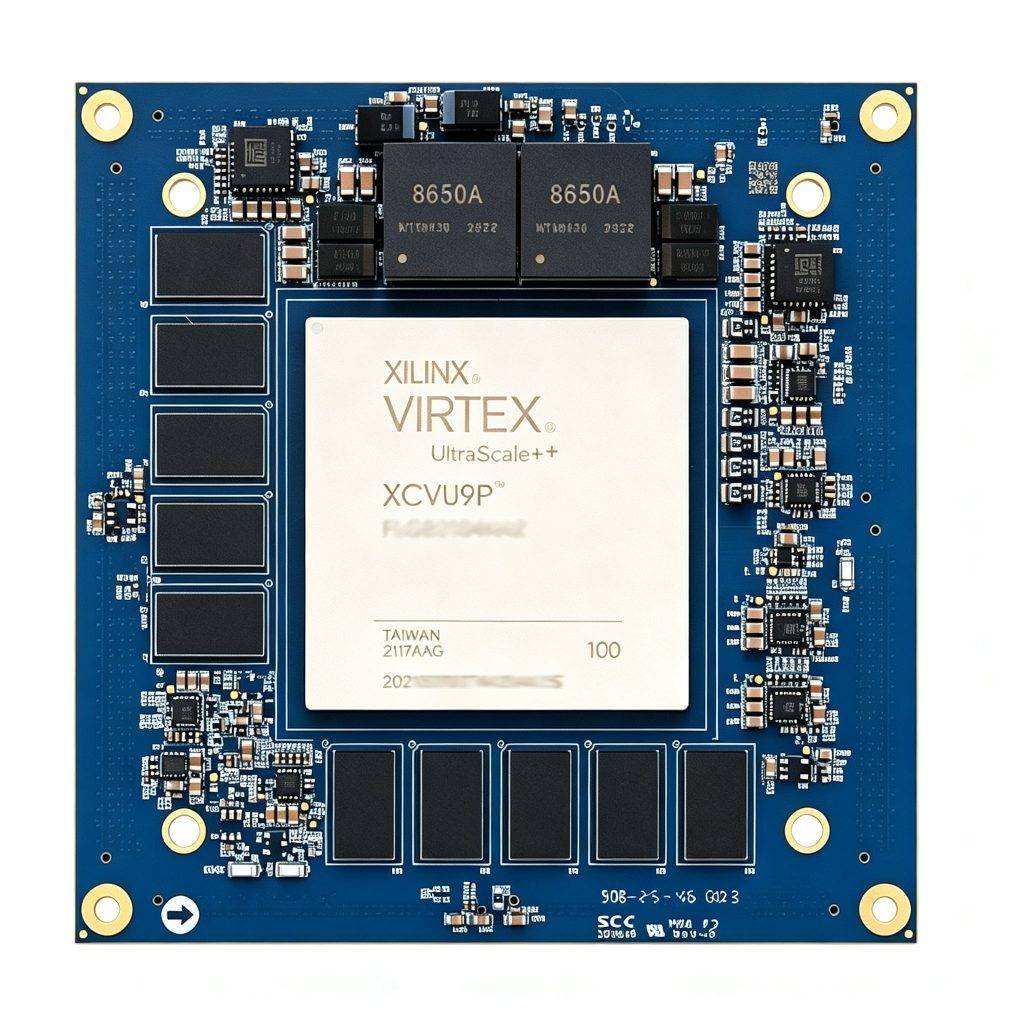

AMD Xilinx XCVU9P Virtex UltraScale+ FPGA Ultra High-Speed Fiber SoM

Board model: VU9C

The VU9C (XCVU9P) compute-version ultra high-end development platform is based on the AMD Xilinx Virtex UltraScale+ industrial FPGA XCVU9P-2FLGB2104I, operating stably across -40°C to 85°C. It adopts a SoM + carrier board separated architecture (SoM 106×106mm / carrier 210×255mm), with massive logic resources, numerous DSP units, large on-chip storage and multiple high-speed optical/PCIe interfaces — designed for high-compute, high-bandwidth applications such as high-speed networking, ASIC prototyping, high-performance computing and real-time signal processing.

$7,692.15 Tax not included · batch and customization supported
2×200G QSFP-DD + 4×100G QSFP28
32GB DDR4 ECC · 2666M
PCIe Gen3 x16 gold fingers
FMC+ / FMC HPC high-speed expansion
2,586K logic · 6,840 DSP
SoM + carrier board separated architecture

Interface, cooling, structure and batch supply can be customized per project · we respond within 1 business day after submission.

Specifications

Data source: www.profpga.net official product page

The VU9C (XCVU9P) compute-version ultra high-end development platform is based on the AMD Xilinx Virtex UltraScale+ industrial FPGA XCVU9P-2FLGB2104I, operating stably across -40°C to 85°C. It adopts a SoM + carrier board separated architecture (SoM 106×106mm / carrier 210×255mm), with massive logic resources, numerous DSP units, large on-chip storage and multiple high-speed optical/PCIe interfaces — designed for high-compute, high-bandwidth applications such as high-speed networking, ASIC prototyping, high-performance computing and real-time signal processing.

Parameter Specification
Board Model VU9C
FPGA Chip Model XCVU9P-2FLGB2104I
Chip Grade Industrial; temperature range -40°C ~ 85°C
Logic Cells 2,586K
LUTs 1,182K
Flip-Flops 2,364K
DSP 6,840
Block RAM 75.9Mb
UltraRAM 270Mb
QSPI Flash 2Gbit (256MB)
Onboard Memory 32GB DDR4 ECC, 2666M data rate, 4×72bit width (with ECC)
PCIe Gen3 1 × PCIe x16 gold fingers
FMC+ LA 34 IO pairs, HA 24 IO pairs, 16 GTY transceiver pairs
FMC HPC LA 34 IO pairs, HA 24 IO pairs, 8 GTY transceiver pairs
QSFP-DD 2 × 200G
QSFP28 4 × 100G
M.2 NVMe 1 × M-Key, PCIe Gen3 ×4
SMA 4 GTY pairs + 1 differential clock pair + 1 trigger pair
Clock Distribution Si5341 clock tree + TCXO; supports 10MHz / 1PPS external reference
Power Supply 12V / 20A; PMBus power telemetry
Gigabit Ethernet 1 × (management/debug)
Board-to-Board Connectors 8 × 240Pin Samtec
Dimensions SoM 106×106mm; carrier 210×255mm

Typical Application Scenarios

One platform, many roles

Artificial Intelligence

AI model deployment demands a balanced combination of compute power, bandwidth and power efficiency. With hardware parallelism, reconfigurable datapaths and rich high-speed interfaces, FPGA and MPSoC deliver low-latency, energy-efficient heterogeneous compute for CNN/YOLO inference, Vitis-AI acceleration and edge intelligence terminals, enabling rapid algorithm porting and product deployment.

Communication

5G/6G base stations and high-speed network equipment impose strict requirements on protocol processing, data forwarding and deterministic latency. With high-speed transceivers, reconfigurable protocol stacks and parallel pipelines, FPGA powers 100G optical communication, protocol processing and network security acceleration, providing a high-throughput, low-latency hardware platform from R&D to mass production.

Research & Prototyping

From university labs to enterprise pre-research, rapidly verifying algorithms and hardware architectures is the critical first step to project success. Duyuan FPGA development boards and SoMs provide rich high-speed interfaces, complete reference designs and end-to-end technical support for ASIC prototype verification, high-speed data acquisition, instrument development and academic research — helping teams turn ideas into working hardware systems quickly.

High-Performance Radar

Phased-array and imaging radar impose strict requirements on signal processing platforms: multi-channel parallel acquisition, high-throughput dataflow and deterministic low latency. With its reconfigurable parallel architecture, FPGA serves as the core carrier of radar signal processing, delivering multi-channel parallel, high-throughput, deterministic low-latency compute in beamforming, pulse compression and target detection, while supporting algorithm reconfiguration and platform evolution.
