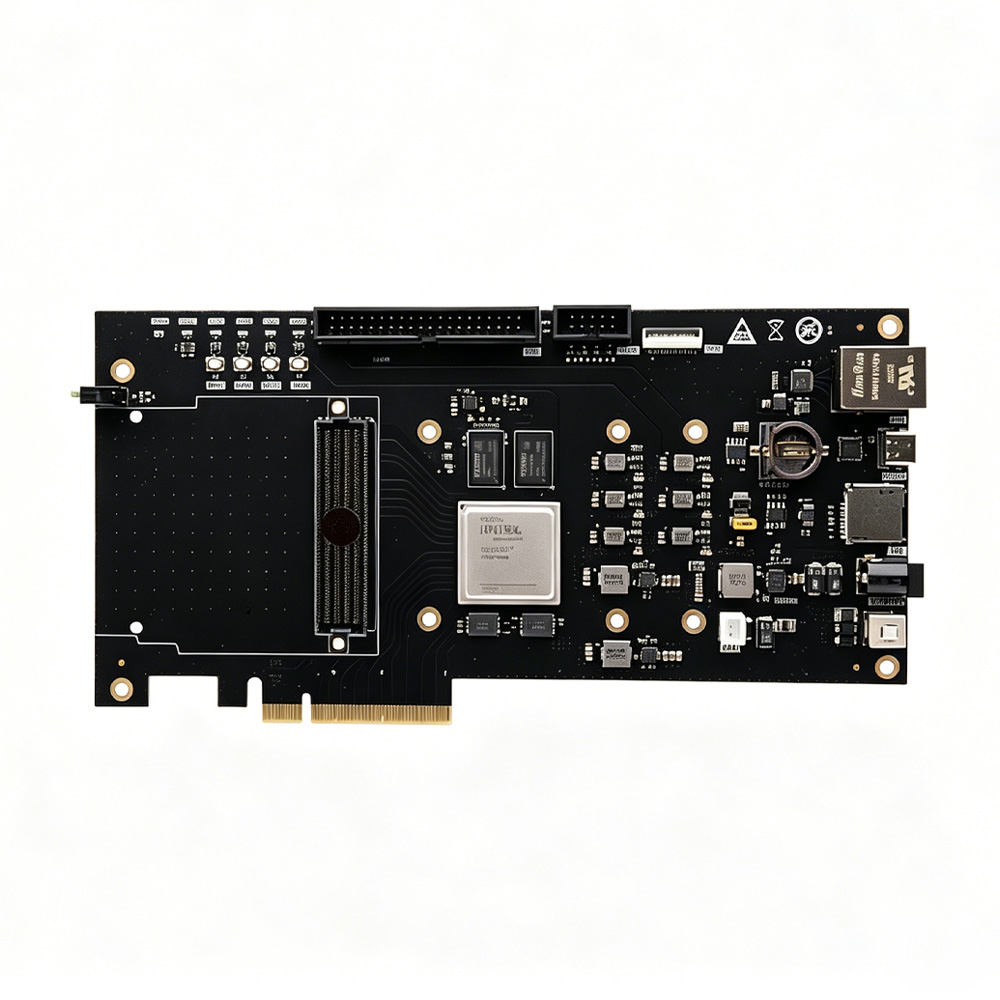

The KU5P is a high-performance development platform built on the AMD Kintex UltraScale+ XCKU5P FPGA. With on-board PCIe Gen3 x8, FMC HPC and GTY 28Gb/s high-speed transceiver interfaces, it combines high bandwidth, strong compute and outstanding cost-effectiveness — an ideal development and deployment platform for mid-to-high-end scenarios such as video processing, industrial automation, high-speed communications, machine vision, data acceleration and medical imaging.
Interface, cooling, structure and batch supply can be customized per project · we respond within 1 business day after submission.
The KU5P is a high-performance development platform built on the AMD Kintex UltraScale+ XCKU5P FPGA. With on-board PCIe Gen3 x8, FMC HPC and GTY 28Gb/s high-speed transceiver interfaces, it combines high bandwidth, strong compute and outstanding cost-effectiveness — an ideal development and deployment platform for mid-to-high-end scenarios such as video processing, industrial automation, high-speed communications, machine vision, data acceleration and medical imaging.

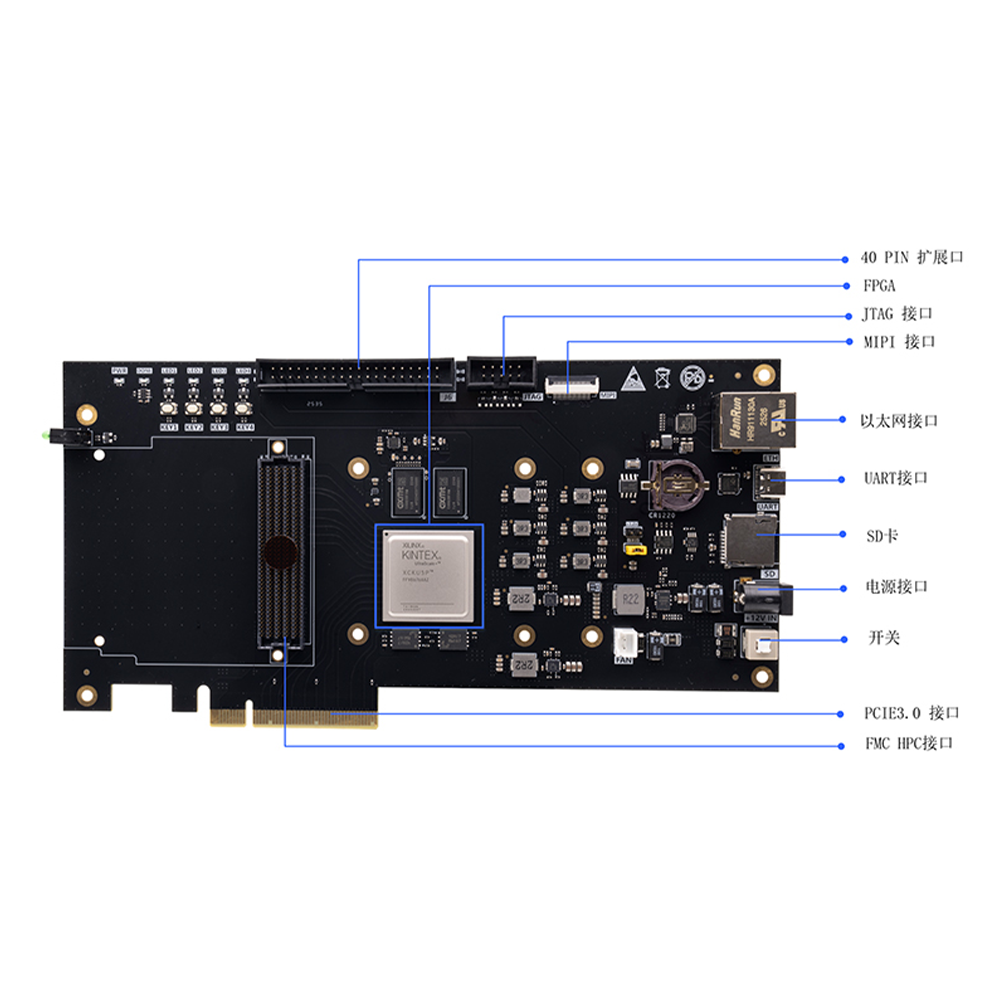

| Parameter | Specification |
|---|---|
| FPGA Model | XCKU5P-2FFVB676I |
| QSPI Flash | 64MB |
| Memory | DDR4 2GB |
| Logic Cells | 475K |
| LUTs | 217K |
| Flip-Flops | 434K |
| DSP | 1824 |
| Block RAM | 16.9Mb |
| HD I/O | 70 |
| HP I/O | 96 |
| Transceivers | GTY 28Gb/s ×16 |
| PCI Express | PCIe Gen3 x8 |
| LEDs | 6 user LEDs; 2 indicator LEDs |
| Buttons | 4 user buttons; 1 power button |
| JTAG Port | 1 for download and debug |
| Gigabit Ethernet Port | 1 × 10M/100M/1000M auto-negotiation RJ45 |
| FMC HPC Port | 1, for standard FMC daughter cards |
| MIPI Port | 1, for MIPI camera |
| USB-UART | 1 × UART Type-C |
| SD Card Slot | 1 × Micro SD |
| RTC Clock | 1 × RTC with battery holder |
| Clock Configuration | 200MHz differential clock for DDR4 |
| 40-Pin Expansion Header | 1, for external function modules |
| PCIe Port | 1 × PCIe 3.0 x8; up to 8Gb/s per lane |
| Input Voltage | +12V |
| Input Current | 3A max current protection |
| Power Supply | 12V/3A |
Industrial sites impose strict requirements on control equipment: wide temperature range, interference immunity and deterministic latency. FPGA handles real-time control, protocol parsing and high-speed I/O acquisition with reconfigurable parallel logic, providing a highly reliable hardware foundation for PLC expansion, motion control and industrial communication buses. Duyuan industrial-grade boards support a -40~85°C wide temperature range and long-term stable supply, helping devices move from prototype verification to mass production.
AI model deployment demands a balanced combination of compute power, bandwidth and power efficiency. With hardware parallelism, reconfigurable datapaths and rich high-speed interfaces, FPGA and MPSoC deliver low-latency, energy-efficient heterogeneous compute for CNN/YOLO inference, Vitis-AI acceleration and edge intelligence terminals, enabling rapid algorithm porting and product deployment.
5G/6G base stations and high-speed network equipment impose strict requirements on protocol processing, data forwarding and deterministic latency. With high-speed transceivers, reconfigurable protocol stacks and parallel pipelines, FPGA powers 100G optical communication, protocol processing and network security acceleration, providing a high-throughput, low-latency hardware platform from R&D to mass production.
Medical equipment demands the highest levels of image quality, real-time performance and reliability. FPGA provides low-latency pipelines and highly reliable hardware for endoscope ISP, medical image processing and device control, helping China-based medical devices achieve independent and controllable development in image enhancement, interface protocols and system miniaturization.
From university labs to enterprise pre-research, rapidly verifying algorithms and hardware architectures is the critical first step to project success. Duyuan FPGA development boards and SoMs provide rich high-speed interfaces, complete reference designs and end-to-end technical support for ASIC prototype verification, high-speed data acquisition, instrument development and academic research — helping teams turn ideas into working hardware systems quickly.
4K/8K video, machine vision and industrial cameras impose strict requirements on end-to-end latency and interface coverage. With hardware-direct video paths and parallel pipelines, FPGA delivers microsecond-level deterministic processing in video encoding/decoding, image pre-processing, multi-protocol interfaces and low-latency transport, supporting deep customization of video services and vision algorithms.
Phased-array and imaging radar impose strict requirements on signal processing platforms: multi-channel parallel acquisition, high-throughput dataflow and deterministic low latency. With its reconfigurable parallel architecture, FPGA serves as the core carrier of radar signal processing, delivering multi-channel parallel, high-throughput, deterministic low-latency compute in beamforming, pulse compression and target detection, while supporting algorithm reconfiguration and platform evolution.
