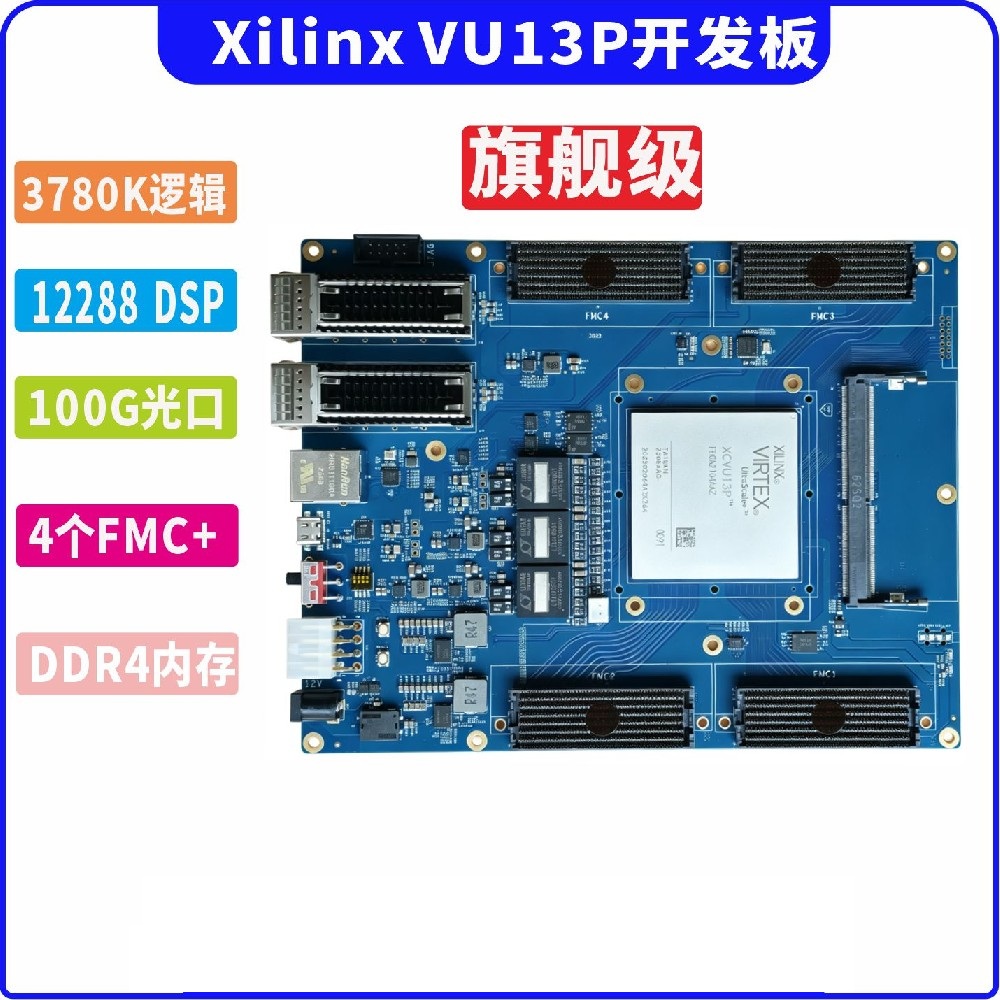

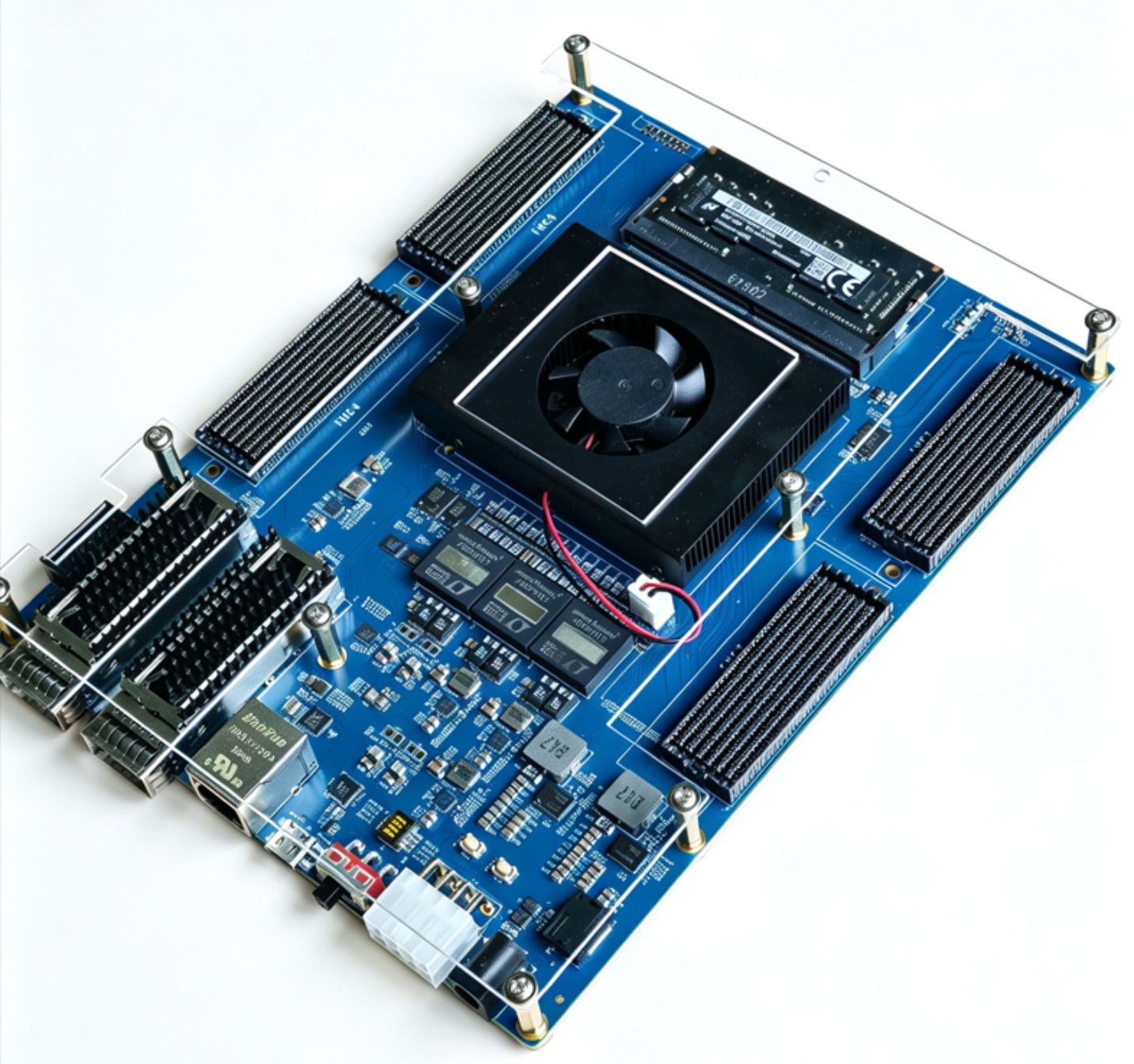

The VU13F is an industrial-grade FPGA development board based on the AMD Xilinx UltraScale+ XCVU13P-2FHGA2104I, designed for high-speed networking, AI acceleration and complex algorithm prototyping. It offers 3780K logic cells, 12,288 DSP slices and 94.5Mb on-chip Block RAM for abundant compute resources. With 4 FMC+ expansion interfaces, 2 QSFP28 100G optical ports, 1 Gigabit Ethernet port and DDR4-SODIMM memory, it delivers outstanding high-speed data throughput. Powered by 12V-20A ATX with a USB Type-C UART port for easy debugging, the compact 205×160mm form factor simplifies system integration. Industrial temperature design makes it suitable for communications R&D, signal processing, research projects and other high-performance development scenarios.
Interface, cooling, structure and batch supply can be customized per project · we respond within 1 business day after submission.
The VU13F is an industrial-grade FPGA development board based on the AMD Xilinx UltraScale+ XCVU13P-2FHGA2104I, designed for high-speed networking, AI acceleration and complex algorithm prototyping. It offers 3780K logic cells, 12,288 DSP slices and 94.5Mb on-chip Block RAM for abundant compute resources. With 4 FMC+ expansion interfaces, 2 QSFP28 100G optical ports, 1 Gigabit Ethernet port and DDR4-SODIMM memory, it delivers outstanding high-speed data throughput. Powered by 12V-20A ATX with a USB Type-C UART port for easy debugging, the compact 205×160mm form factor simplifies system integration. Industrial temperature design makes it suitable for communications R&D, signal processing, research projects and other high-performance development scenarios.
| Parameter | Specification |
|---|---|
| Board Model | VU13F |
| Main Chip | XCVU13P-2FHGA2104I |
| Temperature Grade | Industrial; -40°C ~ 85°C |
| Logic Cells | 3780K |
| LUTs | 1728K |
| Flip-Flops | 3456K |
| DSP Slices | 12288 |
| Block RAM | 94.5Mb |
| DDR4 | SODIMM memory module |
| FMC+ | 4 |
| Gigabit Ethernet | 1 |
| QSFP28 | 2×100G |
| UART | 1×USB Type-C |
| Power Supply | 12V 20A ATX |
| Shape & Size | 205×160mm |
AI model deployment demands a balanced combination of compute power, bandwidth and power efficiency. With hardware parallelism, reconfigurable datapaths and rich high-speed interfaces, FPGA and MPSoC deliver low-latency, energy-efficient heterogeneous compute for CNN/YOLO inference, Vitis-AI acceleration and edge intelligence terminals, enabling rapid algorithm porting and product deployment.
5G/6G base stations and high-speed network equipment impose strict requirements on protocol processing, data forwarding and deterministic latency. With high-speed transceivers, reconfigurable protocol stacks and parallel pipelines, FPGA powers 100G optical communication, protocol processing and network security acceleration, providing a high-throughput, low-latency hardware platform from R&D to mass production.
From university labs to enterprise pre-research, rapidly verifying algorithms and hardware architectures is the critical first step to project success. Duyuan FPGA development boards and SoMs provide rich high-speed interfaces, complete reference designs and end-to-end technical support for ASIC prototype verification, high-speed data acquisition, instrument development and academic research — helping teams turn ideas into working hardware systems quickly.
Phased-array and imaging radar impose strict requirements on signal processing platforms: multi-channel parallel acquisition, high-throughput dataflow and deterministic low latency. With its reconfigurable parallel architecture, FPGA serves as the core carrier of radar signal processing, delivering multi-channel parallel, high-throughput, deterministic low-latency compute in beamforming, pulse compression and target detection, while supporting algorithm reconfiguration and platform evolution.
