AMD Xilinx Kintex-7 XC7K325T Development Board – FPGA Board
Kintex-7 high-performance video development board · 12G-SDI/GMSL2/10G optical · 4K/8K ultra-low-latency codec
$1,384.46Tax not included View details →

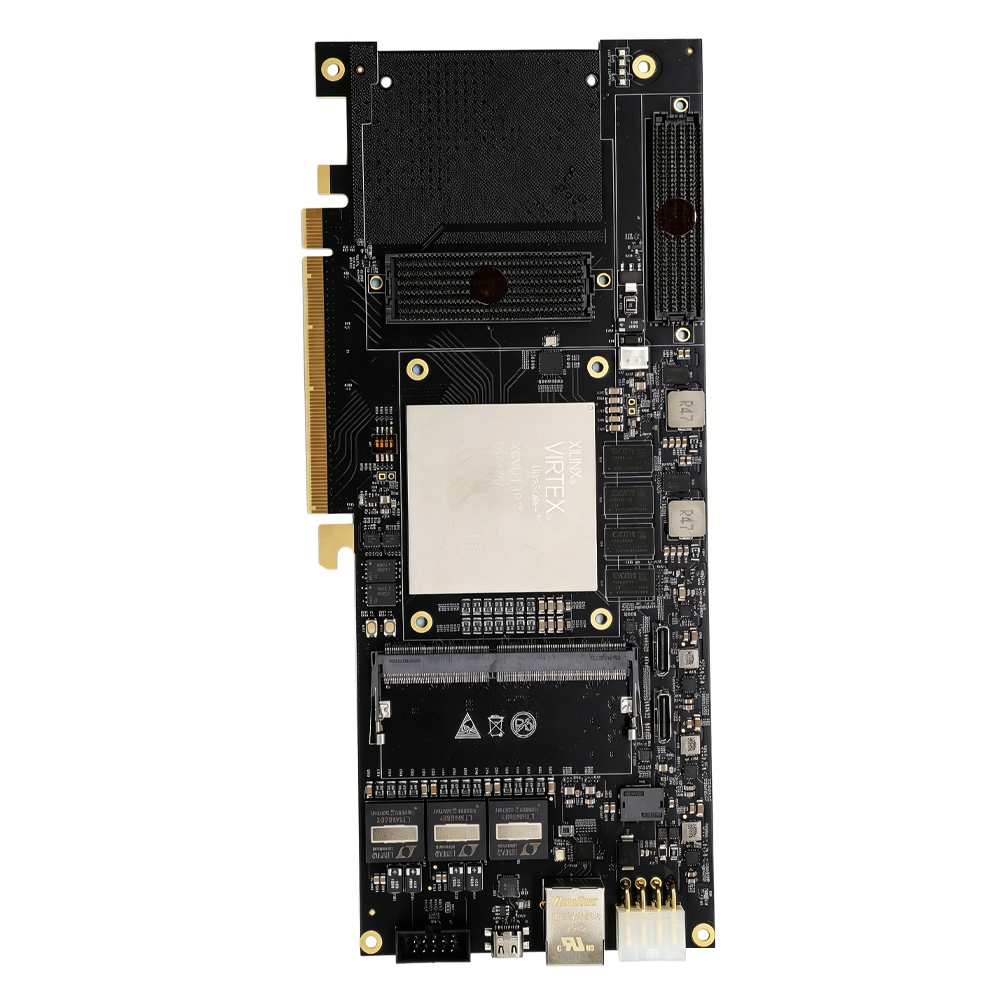

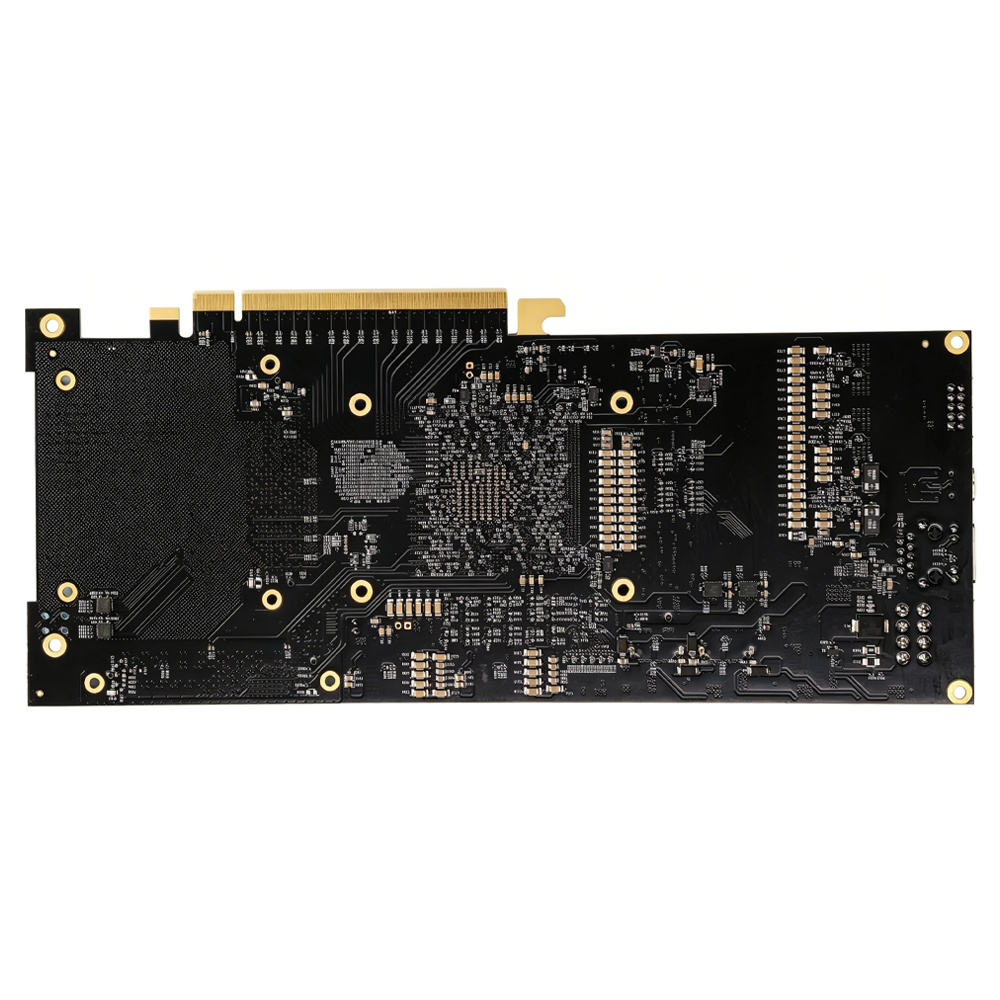

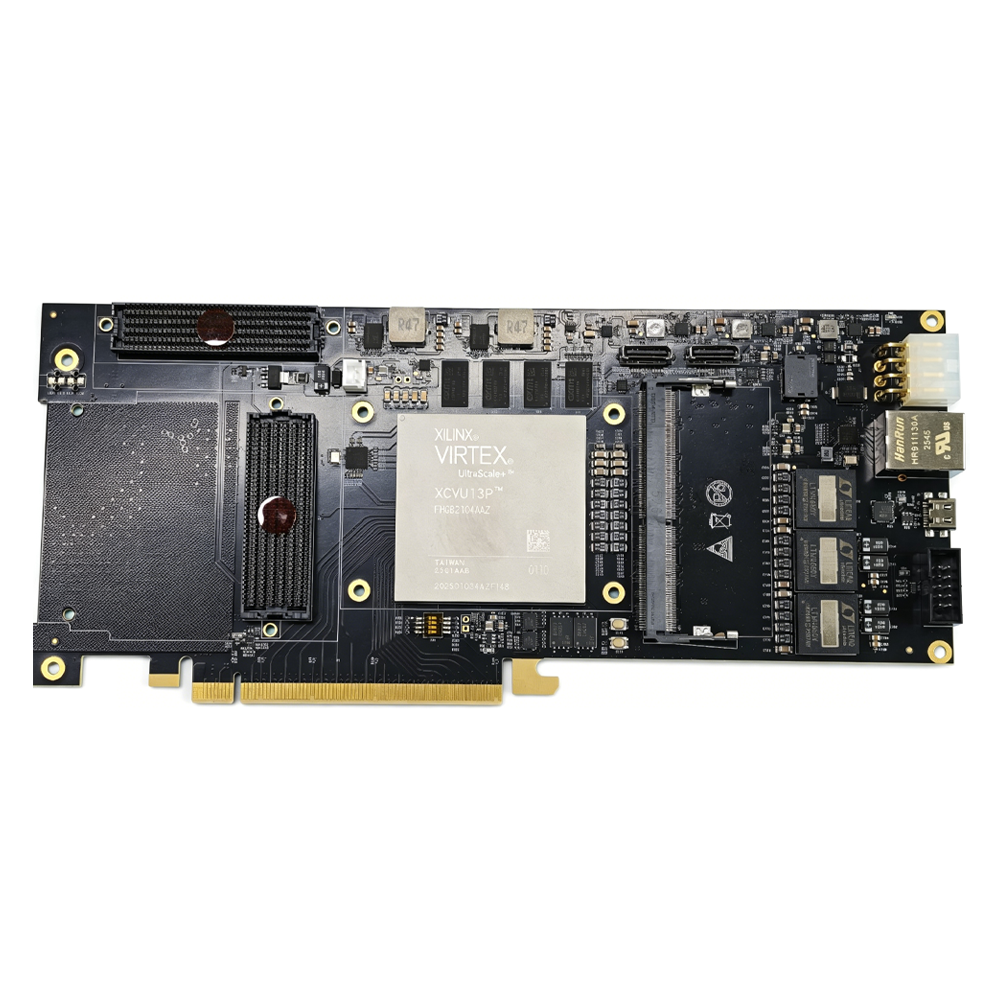

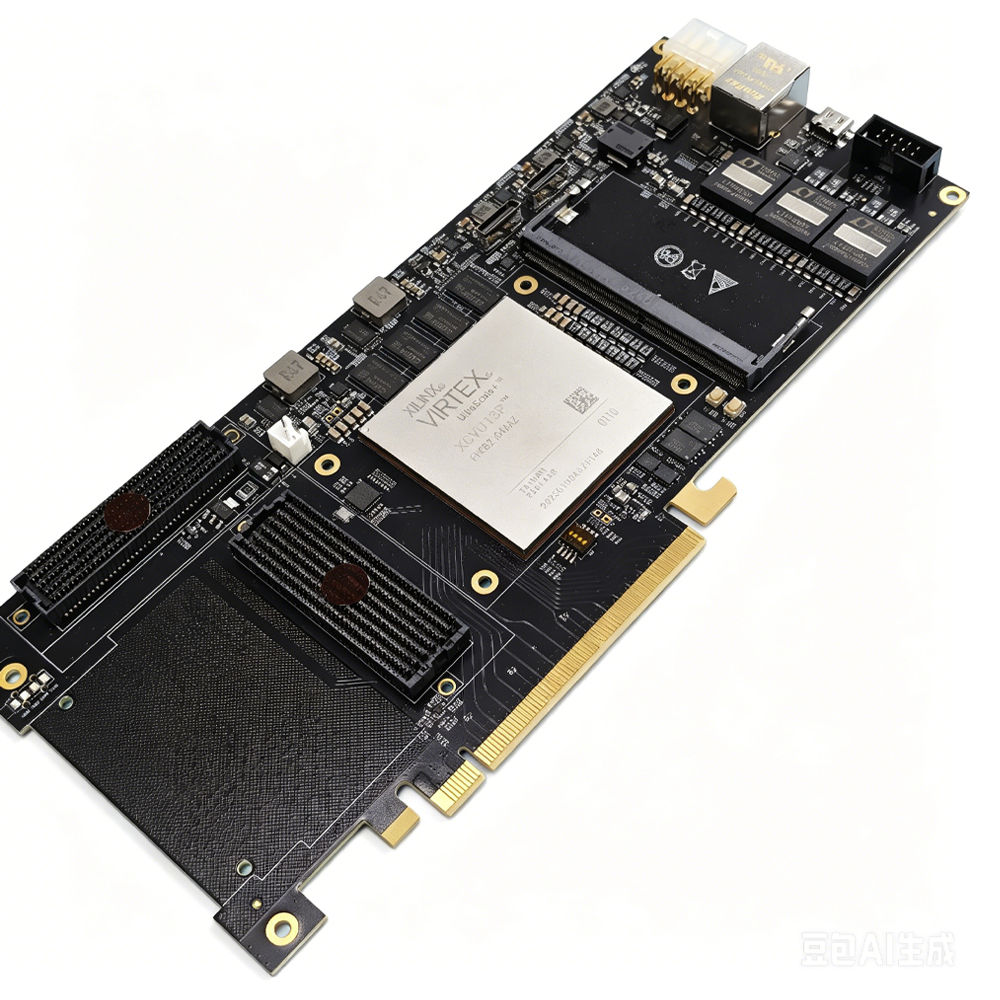

The VU13P (XCVU13P) PCIe ultra high-end development board is based on the AMD Xilinx Virtex UltraScale+ industrial FPGA XCVU13P-2FHGB2104I, operating stably across -40°C to 85°C. With massive logic resources, numerous DSP units, large on-chip storage and multiple high-speed interconnect interfaces, it targets high-compute, high-bandwidth, high-real-time applications such as high-performance industrial vision, high-speed signal processing, low-latency transaction processing and ASIC prototyping — a flagship hardware platform for high-performance FPGA development and algorithm deployment.
Interface, cooling, structure and batch supply can be customized per project · we respond within 1 business day after submission.
The VU13P (XCVU13P) PCIe ultra high-end development board is based on the AMD Xilinx Virtex UltraScale+ industrial FPGA XCVU13P-2FHGB2104I, operating stably across -40°C to 85°C. With massive logic resources, numerous DSP units, large on-chip storage and multiple high-speed interconnect interfaces, it targets high-compute, high-bandwidth, high-real-time applications such as high-performance industrial vision, high-speed signal processing, low-latency transaction processing and ASIC prototyping — a flagship hardware platform for high-performance FPGA development and algorithm deployment.
| Parameter | Specification |
|---|---|
| Board Model | VU13P |

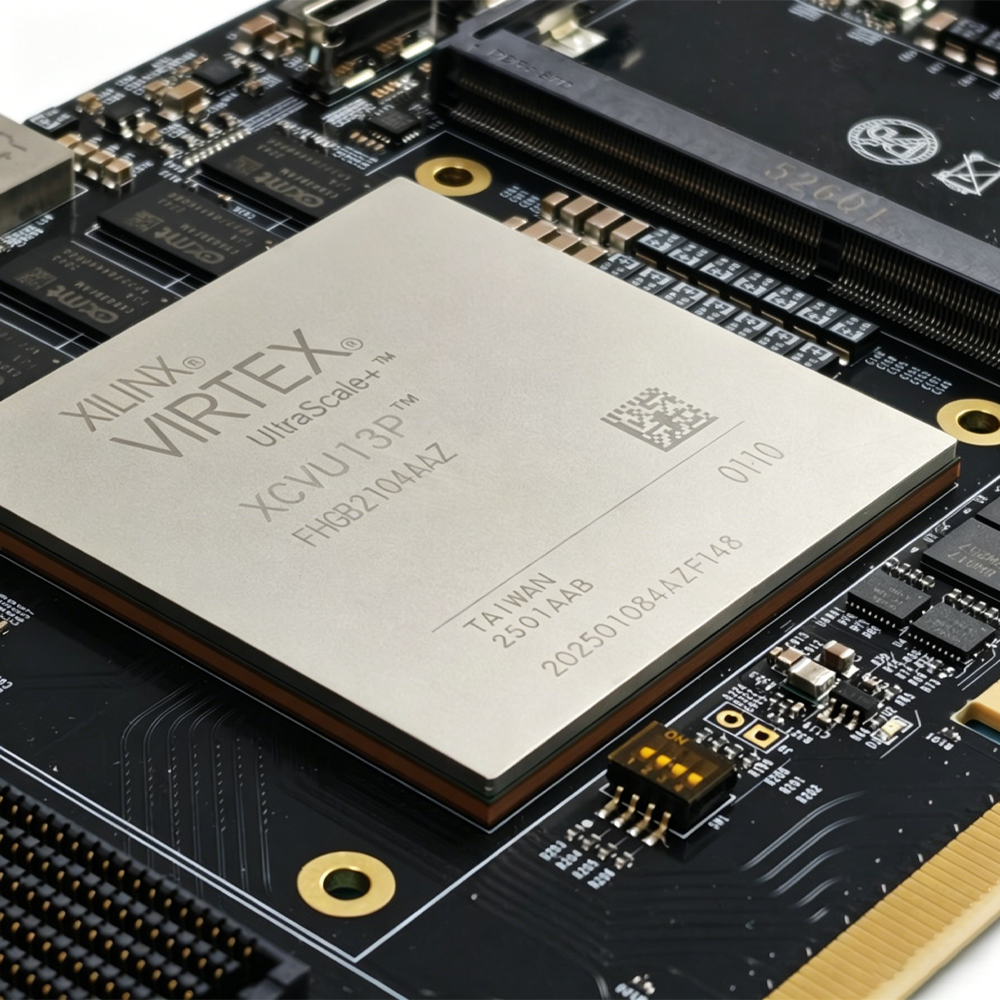

| FPGA Chip Model | XCVU13P-2FHGB2104I |
| Chip Grade | Industrial; temperature range -40°C ~ 85°C |
| Logic Cells | 3,780K |
| LUTs | 1,728K |
| Flip-Flops | 3,456K |
| DSP | 12,288 |
| Block RAM | 94.5Mb |
| UltraRAM | 360Mb |
| QSPI Flash | 2Gbit (256MB) |
| PCIe Gen3 | 1 × PCIe x16 gold fingers |
| FMC+ | LA 34 IO pairs, HA 24 IO pairs, 16 GTY transceiver pairs |
| FMC HPC | LA 34 IO pairs, HA 24 IO pairs, 8 GTY transceiver pairs |
| OCULINK | 2 |
| Onboard Memory | 4GB DDR4, 2400M data rate, 64bit width |
| Expansion Memory Slot | DDR4 SODIMM expansion slot, 72bit width, 2400M DDR4 module supported |
AI model deployment demands a balanced combination of compute power, bandwidth and power efficiency. With hardware parallelism, reconfigurable datapaths and rich high-speed interfaces, FPGA and MPSoC deliver low-latency, energy-efficient heterogeneous compute for CNN/YOLO inference, Vitis-AI acceleration and edge intelligence terminals, enabling rapid algorithm porting and product deployment.
5G/6G base stations and high-speed network equipment impose strict requirements on protocol processing, data forwarding and deterministic latency. With high-speed transceivers, reconfigurable protocol stacks and parallel pipelines, FPGA powers 100G optical communication, protocol processing and network security acceleration, providing a high-throughput, low-latency hardware platform from R&D to mass production.
From university labs to enterprise pre-research, rapidly verifying algorithms and hardware architectures is the critical first step to project success. Duyuan FPGA development boards and SoMs provide rich high-speed interfaces, complete reference designs and end-to-end technical support for ASIC prototype verification, high-speed data acquisition, instrument development and academic research — helping teams turn ideas into working hardware systems quickly.
4K/8K video, machine vision and industrial cameras impose strict requirements on end-to-end latency and interface coverage. With hardware-direct video paths and parallel pipelines, FPGA delivers microsecond-level deterministic processing in video encoding/decoding, image pre-processing, multi-protocol interfaces and low-latency transport, supporting deep customization of video services and vision algorithms.
Phased-array and imaging radar impose strict requirements on signal processing platforms: multi-channel parallel acquisition, high-throughput dataflow and deterministic low latency. With its reconfigurable parallel architecture, FPGA serves as the core carrier of radar signal processing, delivering multi-channel parallel, high-throughput, deterministic low-latency compute in beamforming, pulse compression and target detection, while supporting algorithm reconfiguration and platform evolution.
FPGA Development Boards
Kintex-7 high-performance video development board · 12G-SDI/GMSL2/10G optical · 4K/8K ultra-low-latency codec
FPGA Development Boards
XCVU13P industrial-grade FPGA · 3780K logic · 4×FMC+ · 2×100G optical ports · 12V-20A ATX
FPGA Development Boards
Kintex UltraScale+ high-performance development board · PCIe Gen3 x8 · GTY 28G transceivers · 475K logic
We respond within 1 business day after submission, supporting selection consulting, parameter customization and batch supply.
Contact · +86 18621324348
